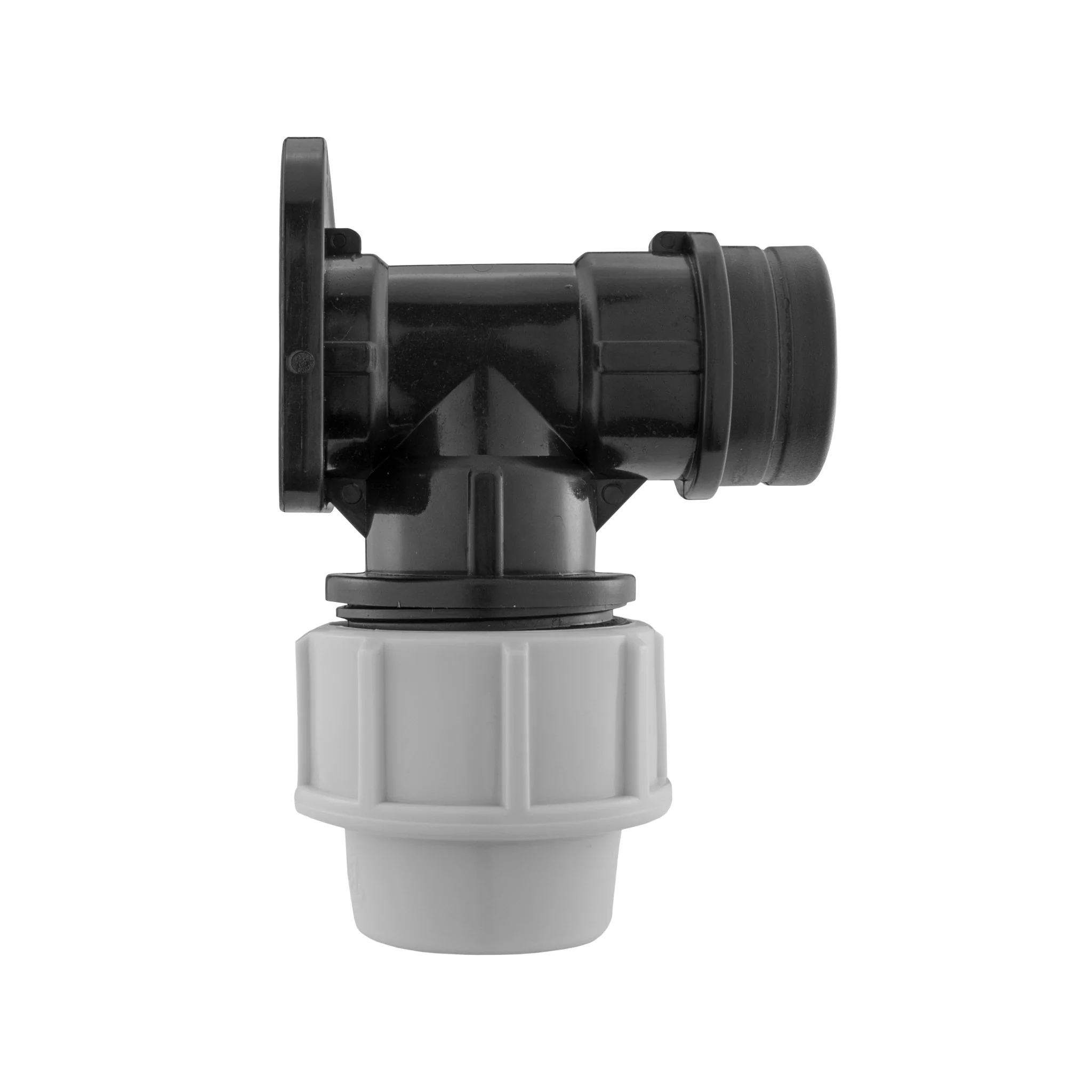

Wall Flange Kit 25mm MDPE + Quick Connector Male

Wall Flange Kit 25mm MDPE + Quick Connector Male is a compact, two‑piece MDPE connection kit designed for fixing 25mm MDPE piping to a wall and enabling quick hose or accessory connections. Built for tradespeople, it simplifies mounting and servicing outside or in tight spaces.

This kit includes:

• 1 x MDPE Wall Flange 25mm – ¾” BSP (MDPEWF25-34BSPF)
• 1 x Click-Lock Quick Connector Male (TAPCON34BSPM001B)

Key features

• Compression connections provide a tight, leak‑free seal without specialised tools
• MDPE wall flange used to join pipe to flat surfaces, increasing arrangement flexibility
• Pressure rating PN10 (max 10 bar / ~145 psi), suitable for typical water and irrigation runs
• Durable MDPE material with good chemical resistance and weather performance
• Click‑Lock Quick Connector outlet offers easy connection and quick release for hoses or accessories
• Lightweight construction with corrosion resistance; designed for regular handling in busy trades
• Note: PTFE tape is not included and must be purchased separately

Ideal uses

• Garden irrigation runs where a wall‑mounted termination is required
• External water supply connections for sheds or outbuildings
• Industrial or workshop pipework where a removable hose connection is beneficial

Installation tips

• Cut MDPE pipe squarely and insert into the wall‑flange compression nut; tighten by hand until snug, then give a secure final turn without overtightening
• Mate the ¾" BSP female thread on the wall flange with the ¾" BSP male inlet of the quick connector to form a leak‑tight seal
• Inspect for leaks after pressurising the line; replace PTFE tape if resealing is required on threaded joints
