Wall Flange Kit 25mm MDPE + Lever Valve + 20mm MDPE Tee

Compact three-piece MDPE piping kit designed for tradespeople installing water supply lines, irrigation or light industrial pipework. It combines a 25mm MDPE wall flange, a 20mm MDPE tee and a ¾" BSP lever valve in one ready-to-use package, enabling quick surface mounting and neat branch connections with minimal fuss. What’s in the kit

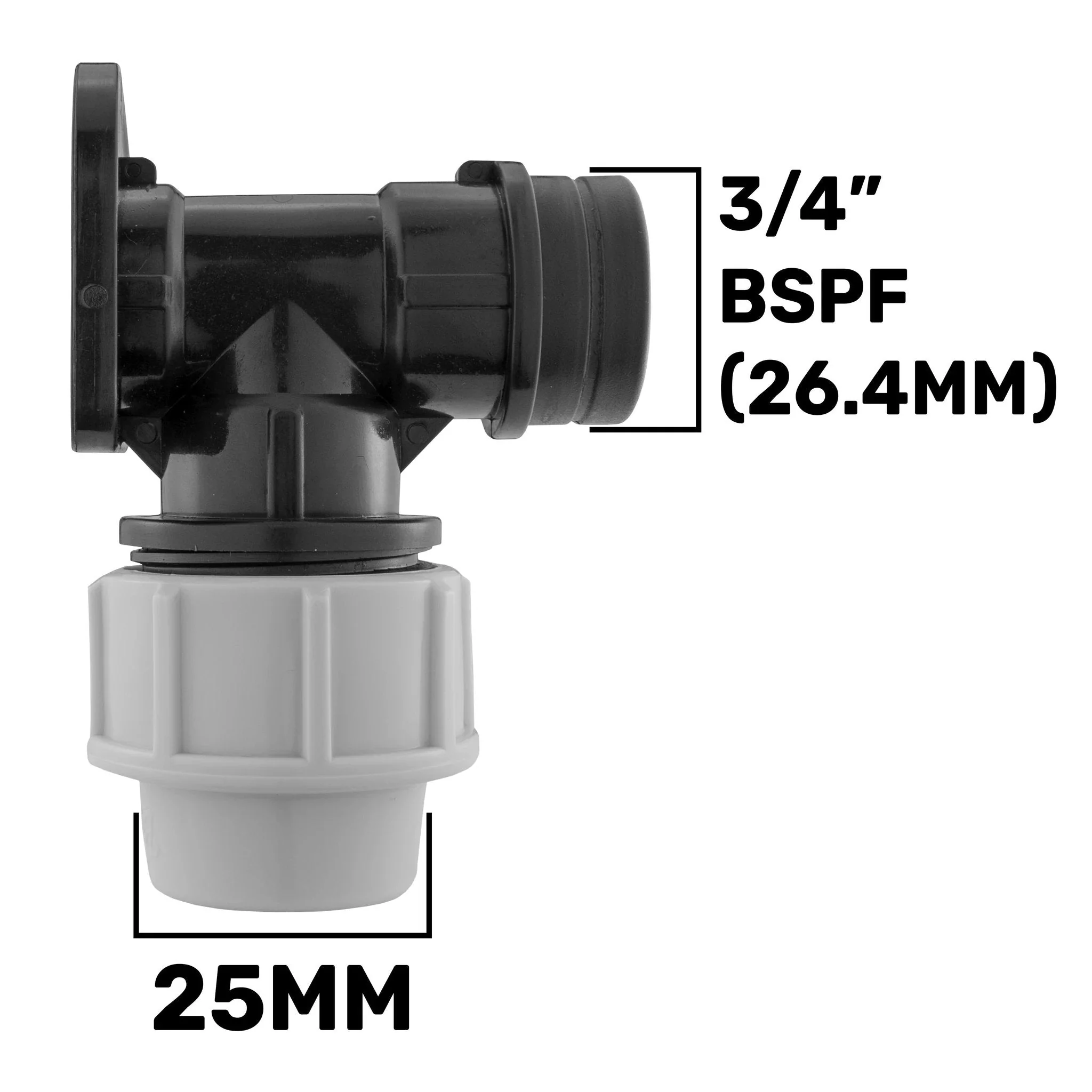

• MDPE Wall Flange 25mm – ¾" BSP (MDPEWF25-34BSPF)
• MDPE Tee ¾" BSP – 20mm (MDPETEE20-34BSPM)

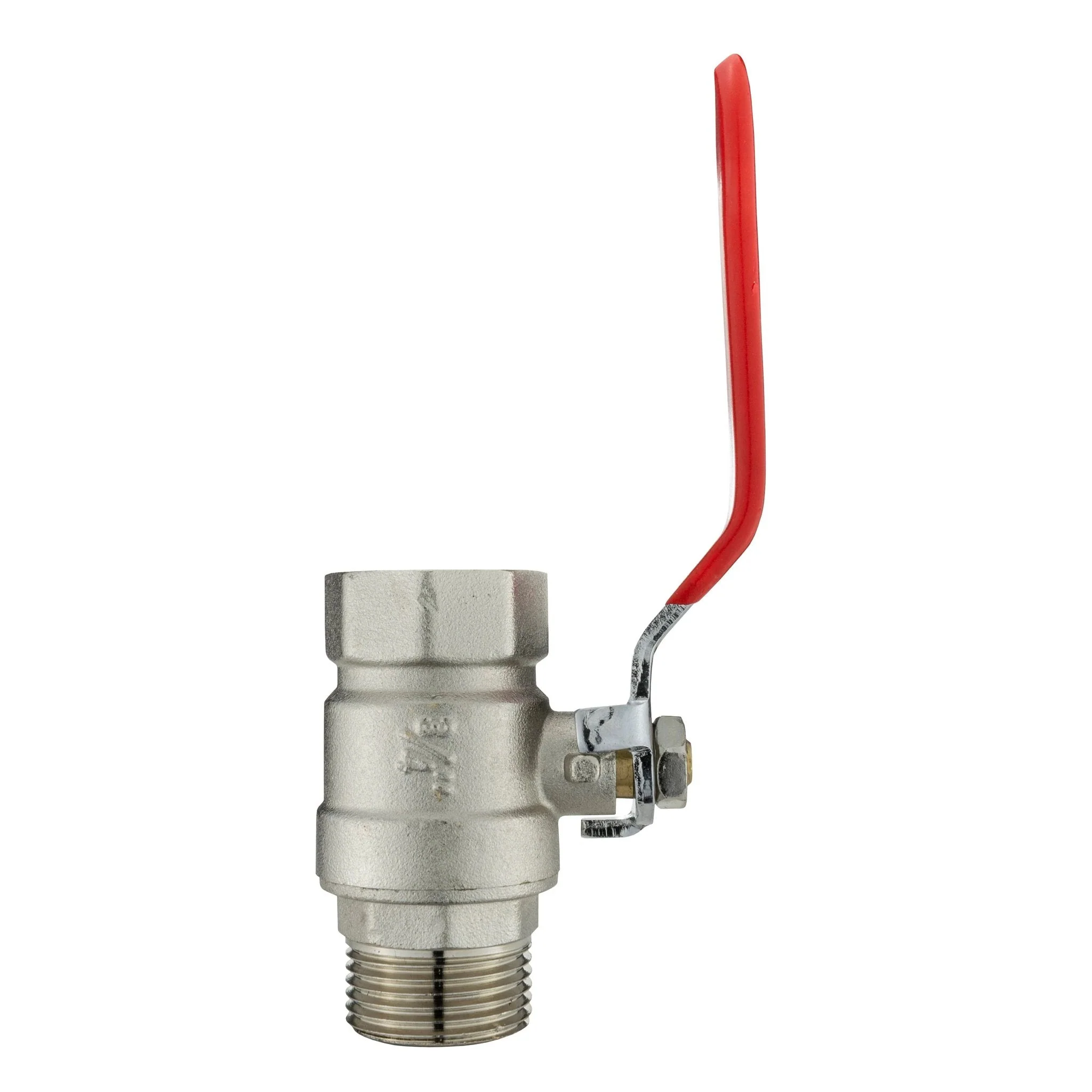

• Lever Valve ¾" BSPM-F (BRVALVE34BSPM-F)

Key features and how they help

• MDPE fittings are known for durability, flexibility and chemical resistance, making them suitable for water supply, irrigation and certain industrial processes.
• Threaded compression connections provide a leak‑free seal without the need for specialist tooling, helping speed up installations on site.
• Wall flange secures a pipe to a flat surface, improving stability and neatness in exposed or suspended installations.
• 20mm MDPE tee enables a clean 90-degree branch from the main line, simplifying route changes without additional parts.
• Brass nickel-plated lever valve offers robust on/off control with corrosion resistance and a smooth lever operation for frequent use in water or irrigation setups.

Specifications and practical notes

MDPE PN10 pipe fittings are engineered to withstand up to 10 bar (approximately 145 psi) under normal conditions, providing a reliable basis for domestic and light commercial piping. The kit is designed for MDPE pipe sizes 25 mm (main) and 20 mm (branch) as described above.

Please note: this kit is not supplied with PTFE tape. PTFE tape should be purchased separately to seal BSP threaded connections if required by your installation guidelines.

Tips for use on site

• Cut MDPE pipes square and deburr ends before assembly to achieve the best seal with compression fittings.
• Clean fittings before assembly to prevent debris from affecting the seal.
• Follow standard practice for BSP thread sealing; apply PTFE tape to threaded connections if recommended by your site standards and ensure a firm but careful tighten.
• After assembly, check for leaks using a soap‑bubble test or appropriate industry method.
