Wall Flange Kit 20mm MDPE + Quick Connect Triple Metal Splitter Tap

Wall Flange Kit 20mm MDPE + Quick Connect Triple Metal Splitter Tap is a ready-to-install outdoor water connection solution for 20mm MDPE piping. Designed for tradespeople and builders, it provides a secure, leak-tight path from pipework to external outlets and irrigation lines.

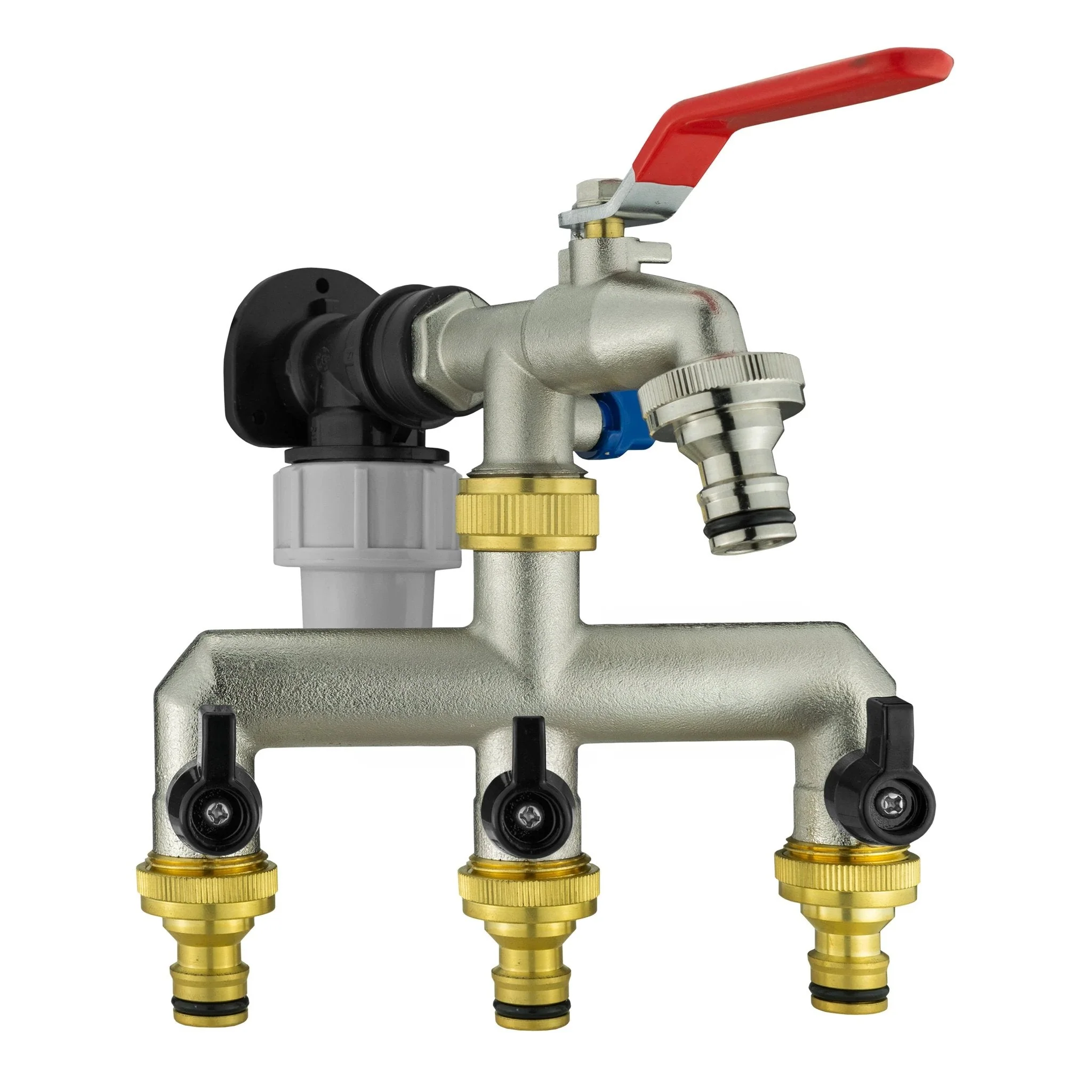

• What’s included: 1 x MDPE Wall Flange 20mm – 1/2" BSP (MDPEWF20-12BSPF), 1 x Double Lever Tap (GT-D-LEVER12Q), 1 x Three Way Tap Adaptor Splitter with Threaded Outlets (TC3-WAY-H-TH), 3 x Snap-On Male Tap Connector (TAPCON34BSPM001BRASS).

Key features

• MDPE wall flange with a 20mm pipe size and 1/2" BSP thread provides a stable, weather‑resistant connection point for external taps.
• The Double Lever Tap is a nickel-plated metal fixture with a 1/2" BSP inlet and a click-lock outlet, enabling straightforward on/off control with a secure seal.
• The Three Way Tap Adaptor Splitter offers three independent 3/4" BSP outlets, allowing multiple irrigation or watering lines to be fed from a single supply.
• Snap-On Male Tap Connectors attach quickly to MDPE and taps, delivering reliable compression connections that reduce the need for specialist tools.
• MDPE PN10 fittings are rated to a maximum pressure of 10 bar (approx. 145 psi), suitable for typical outdoor water services and irrigation setups.

Use cases

• Outdoors irrigation systems and garden taps from a single MDPE supply.
• Feeding multiple hoses or sprinklers from one external outlet with individual valve control.
• Temporary or seasonal wash-down points near sheds or outbuildings where a robust external connection is required.

Installation notes

• Uses compression connections to MDPE; ensure pipe ends are clean and cut square for a tight seal.
• Do not exceed 10 bar maximum operating pressure; install in a sheltered, accessible location for maintenance.
• Compatible with standard 1/2" BSP and 3/4" BSP threaded fittings; ensure outlets are matched to hoses or equipment.
