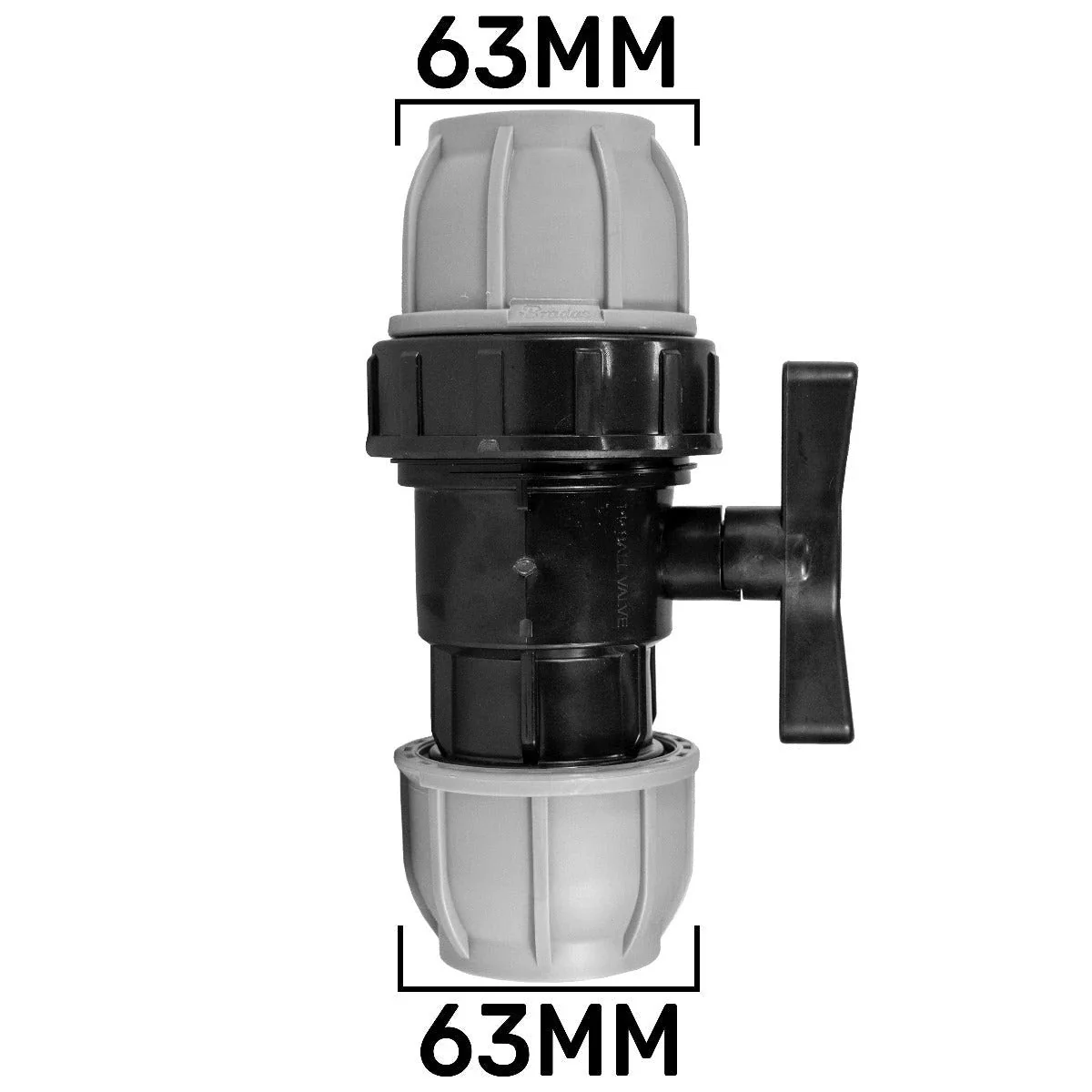

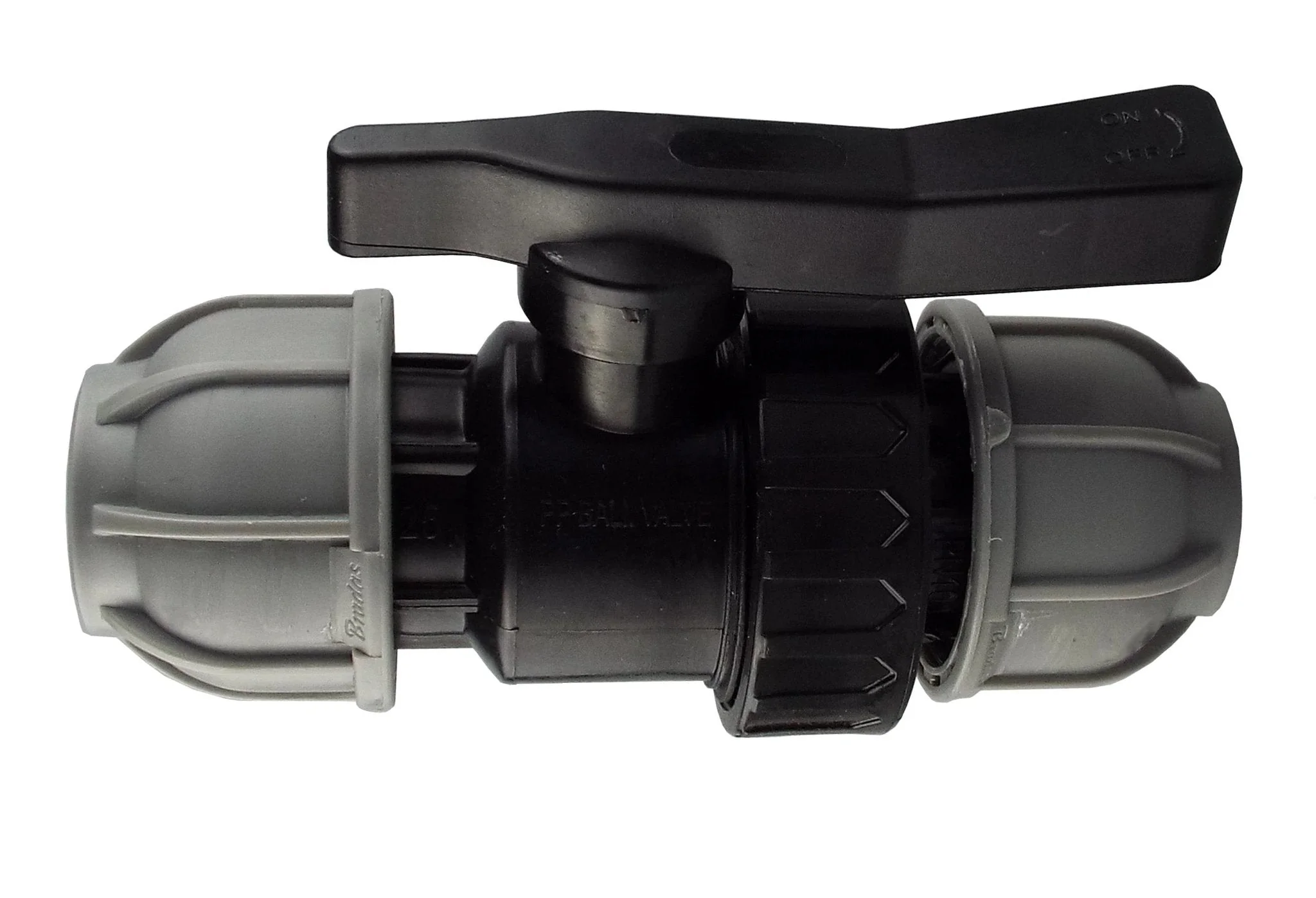

MDPE Valve 63mm

The MDPE Valve 63mm compression fitting is a robust, user-friendly shut-off solution for MDPE piping, designed for tradespeople installing water supply or irrigation networks. It combines a valve with a compression connection to deliver secure, leak-free joints without the need for specialist tools.

• Pressure rating: Designed for PN10 MDPE piping, with a maximum working pressure of 10 bar (approximately 1 MPa or 145 psi).
• Corrosion resistance: MDPE material resists corrosion from chemicals and environmental conditions found in residential and light industrial piping.
• Leak-free joints: When installed with the correct 63mm MDPE pipe and olive, joints are formed to minimise leakage at the connection point.
• Durability: Built to withstand outdoor exposure and typical temperature variations without degradation over the long term.
• Versatility: Suitable for water supply and irrigation projects; compatible with PN10 MDPE pipe systems and other compression fittings within MDPE networks.
• Ease of installation: Requires no specialist equipment; simply assemble using standard compression nuts and olives to join MDPE pipe sections.

Ideal use scenarios include isolating sections of a mains water line, creating a controllable shut-off within irrigation circuits, or servicing farm water lines where a quick, reliable valve connection is needed. It’s well suited to both new installations and retrofit projects where MDPE piping is in play.

Installation tips for reliable performance:
• Cut the MDPE pipe square and remove burrs for a clean seat.
• Slide the compression nut and olive onto the pipe, insert into the valve until it seats fully.
• Tighten the nut with the appropriate spanner until snug, then give a final check to ensure there are no gaps or cross-threading.
• Use appropriate pipe support and keep exposure to the elements in mind to preserve long-term integrity.

Choose the 63mm MDPE valve compression fitting for a dependable, ready-to-use connection that supports PN10 systems and straightforward maintenance in water and irrigation applications. Always confirm pipe size and system pressure match before installation.
