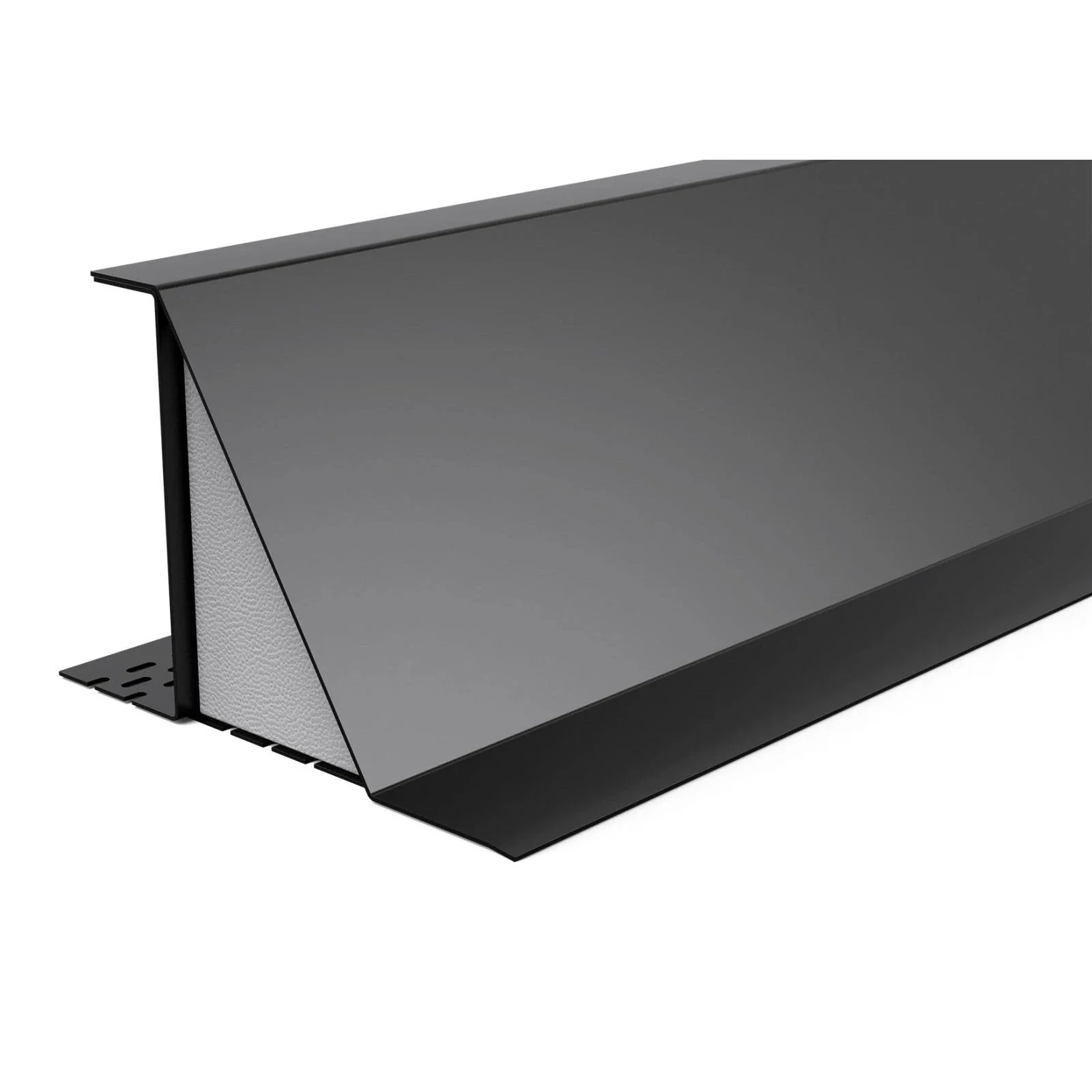

Catnic CX150/100 150mm Extra Heavy Duty Cavity Lintel

Catnic CX150/100 150mm Extra Heavy Duty Cavity Lintel is a galvanised steel lintel built for wide cavity wall construction between 150mm and 165mm. It features an open back profile to support inner leaf widths from 100mm to 115mm and outer leaves between 100mm and 102mm.

With a nominal height of 232mm and a safe working load up to 60kN, this lintel handles substantial structural loads. Depending on length, each lintel weighs between 16.34kg and 104.74kg (approx. 16,340g to 104,740g). Suitable for domestic and commercial masonry builds.

Key Features

• Open back steel lintel for 150–165mm cavity walls
• Inner leaf width: 100–115mm | Outer leaf: 100–102mm
• Load-rated up to 60kN for extra heavy duty applications
• Hot-dip galvanised steel for long-term corrosion resistance
• Nominal height: 232mm
• Weight range: approx. 16.34kg to 104.74kg
• Manufacturer: Catnic
• Datasheet
